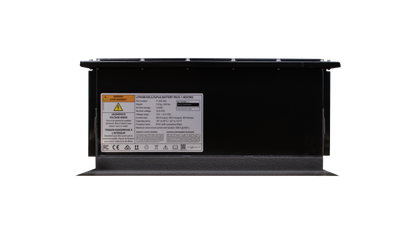

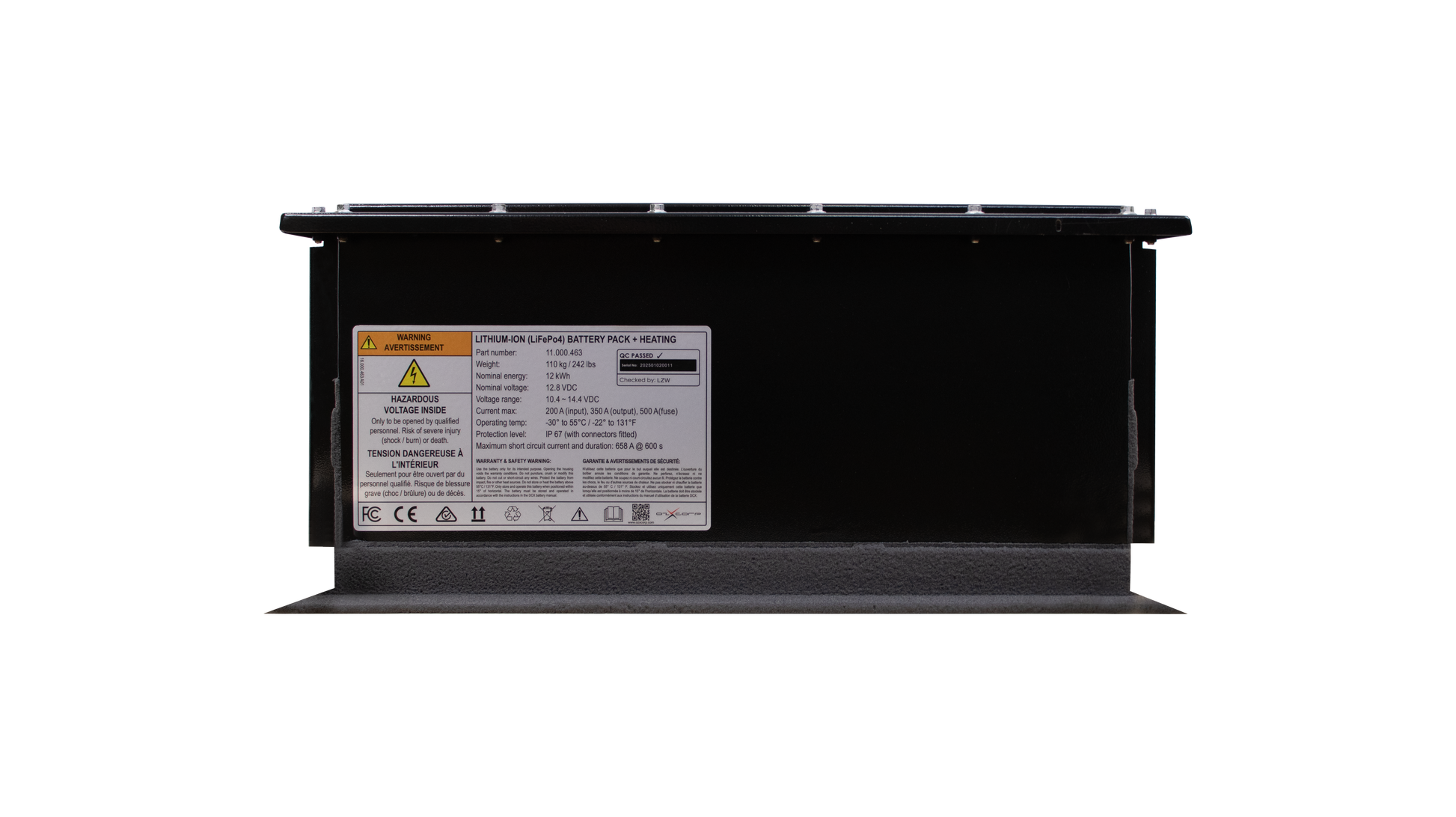

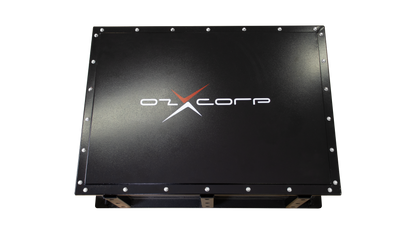

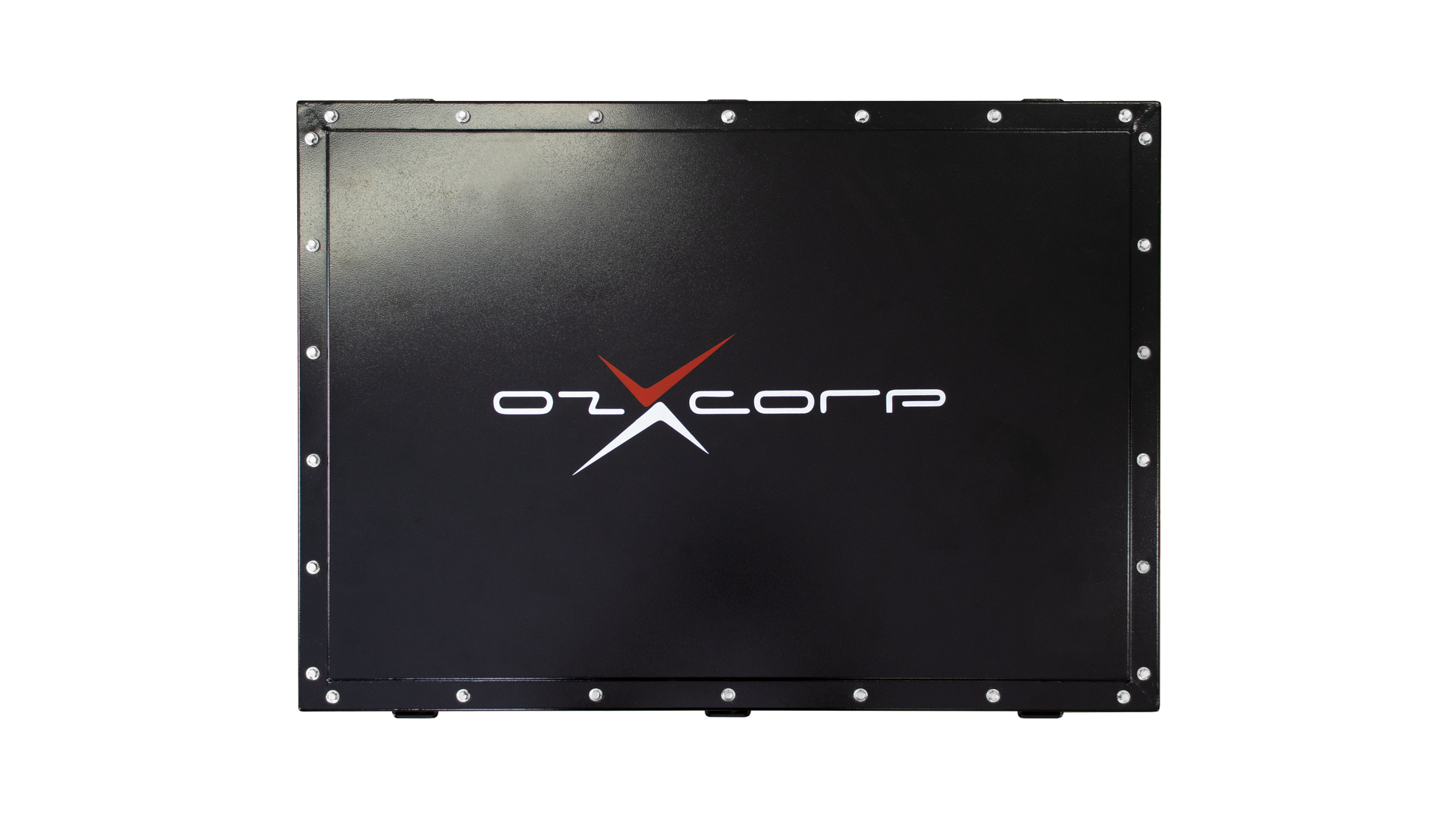

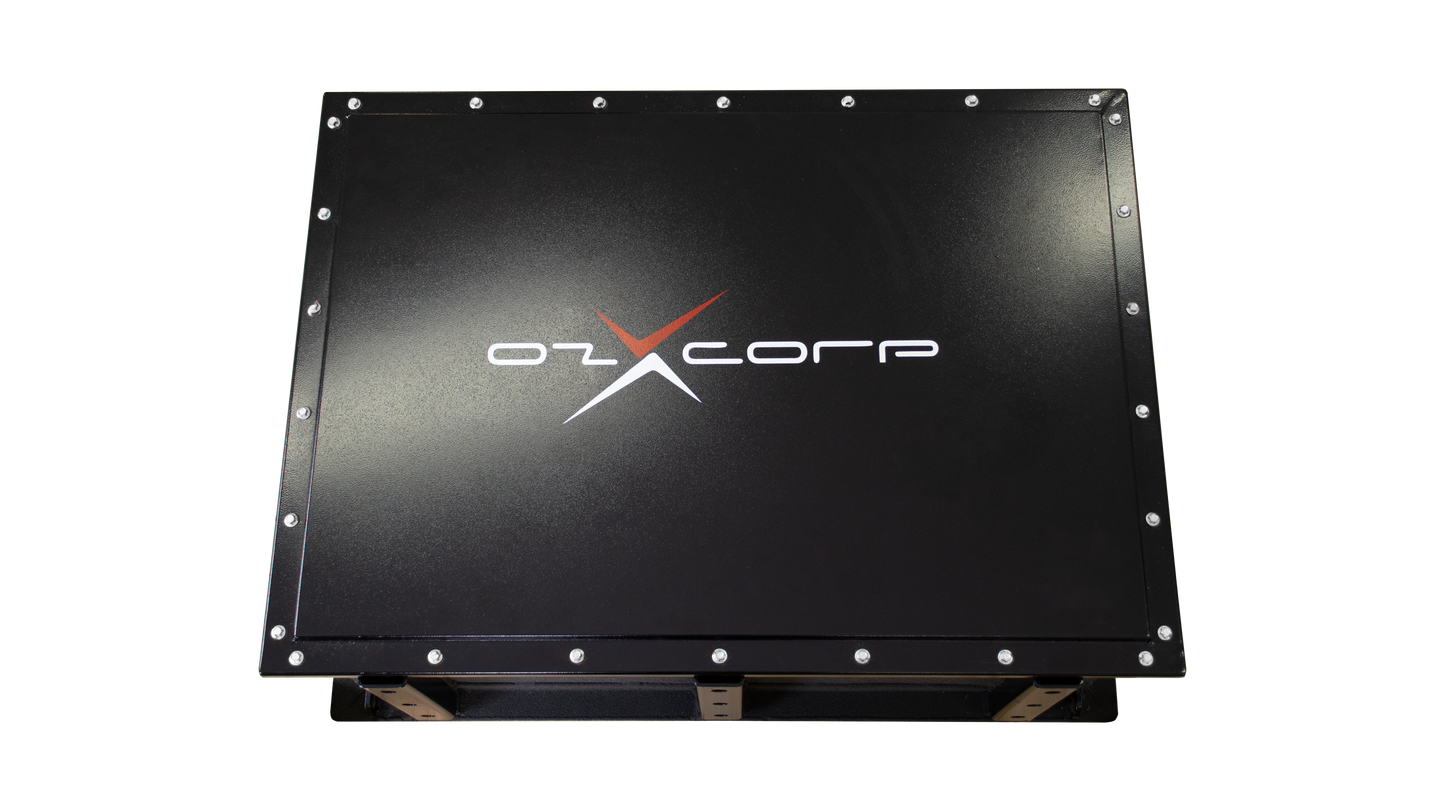

DCX 12V Chassis Mount Battery – 628Ah

DCX 12V Chassis Mount Battery – 628Ah

$6,999.99 AUD
$6,999.99 AUD
Sale Sold out

DCX-BAT-12-628

8kWh of DCX Power. Built Into the Chassis.

Go further with a battery system engineered for the way modern caravans and off-grid vehicles are actually built. The DCX 628Ah combines 8kWh of lithium energy with a purpose-designed chassis-mount architecture, helping manufacturers and owners maximise onboard power while keeping battery mass low, secure and integrated with the vehicle. With integrated heating, automotive-grade connectors, IP67 protection, advanced BMS protection and UL1973:2022 compliance, DCX is engineered beyond the traditional "battery in a box" approach.

Key Benefits

  • Engineered for the vehicle, not adapted to it — built around the chassis from the beginning
  • Designed for mobile environments: vibration, movement and temperature extremes
  • Integrated heating supports reliable operation in demanding conditions
  • The entry point into DCX's chassis-mount platform

What's Included

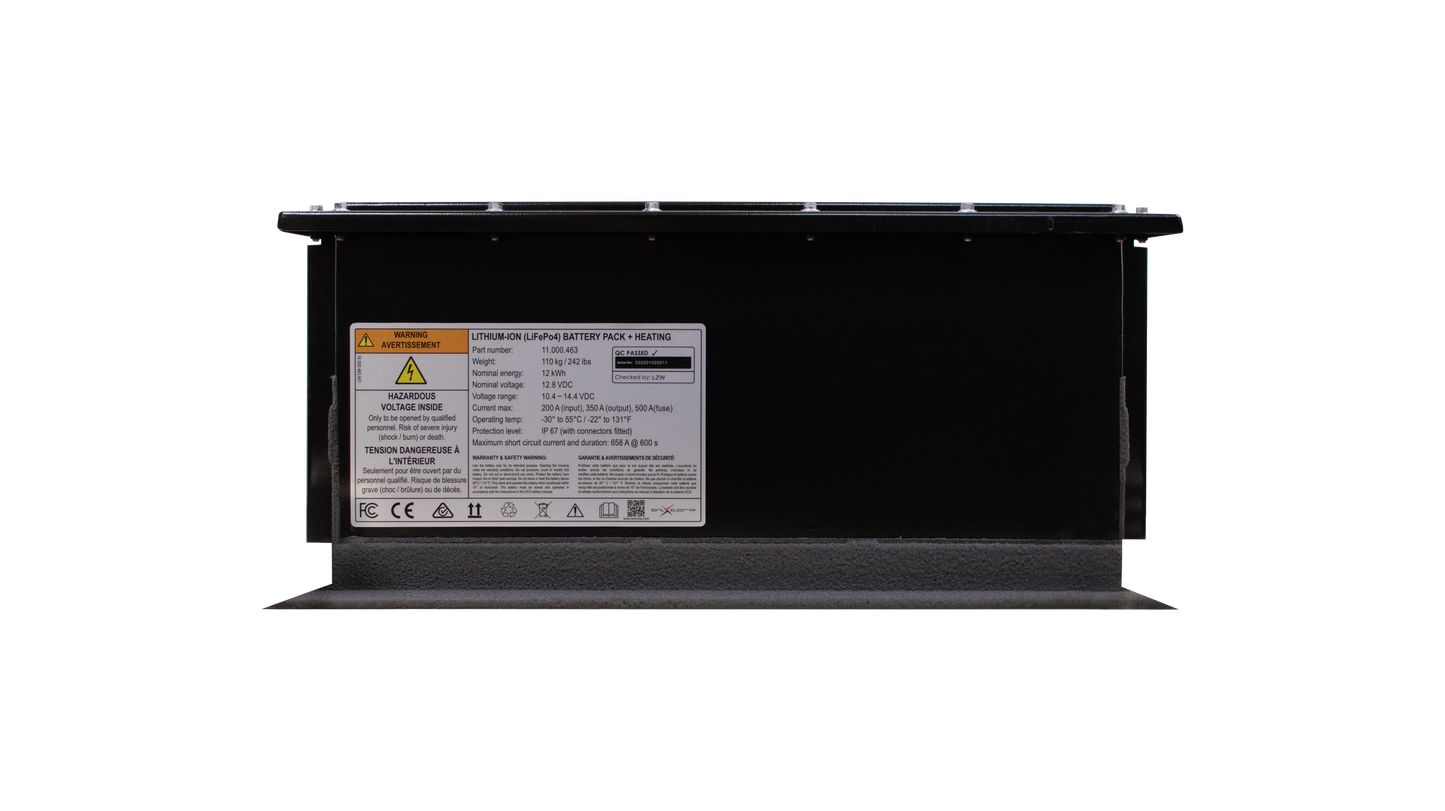

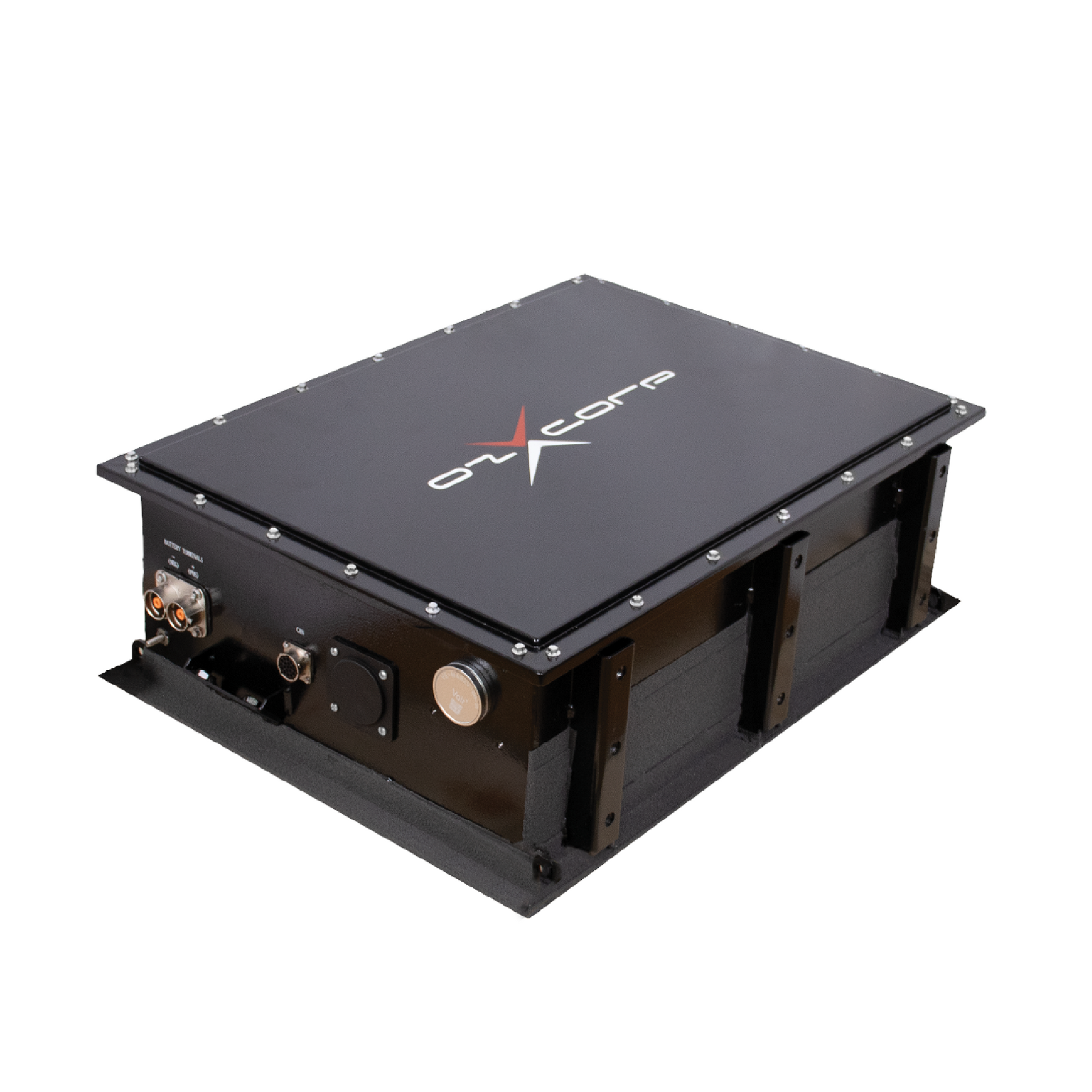

  • 1x DCX 12.8V 628Ah Chassis Mount Battery

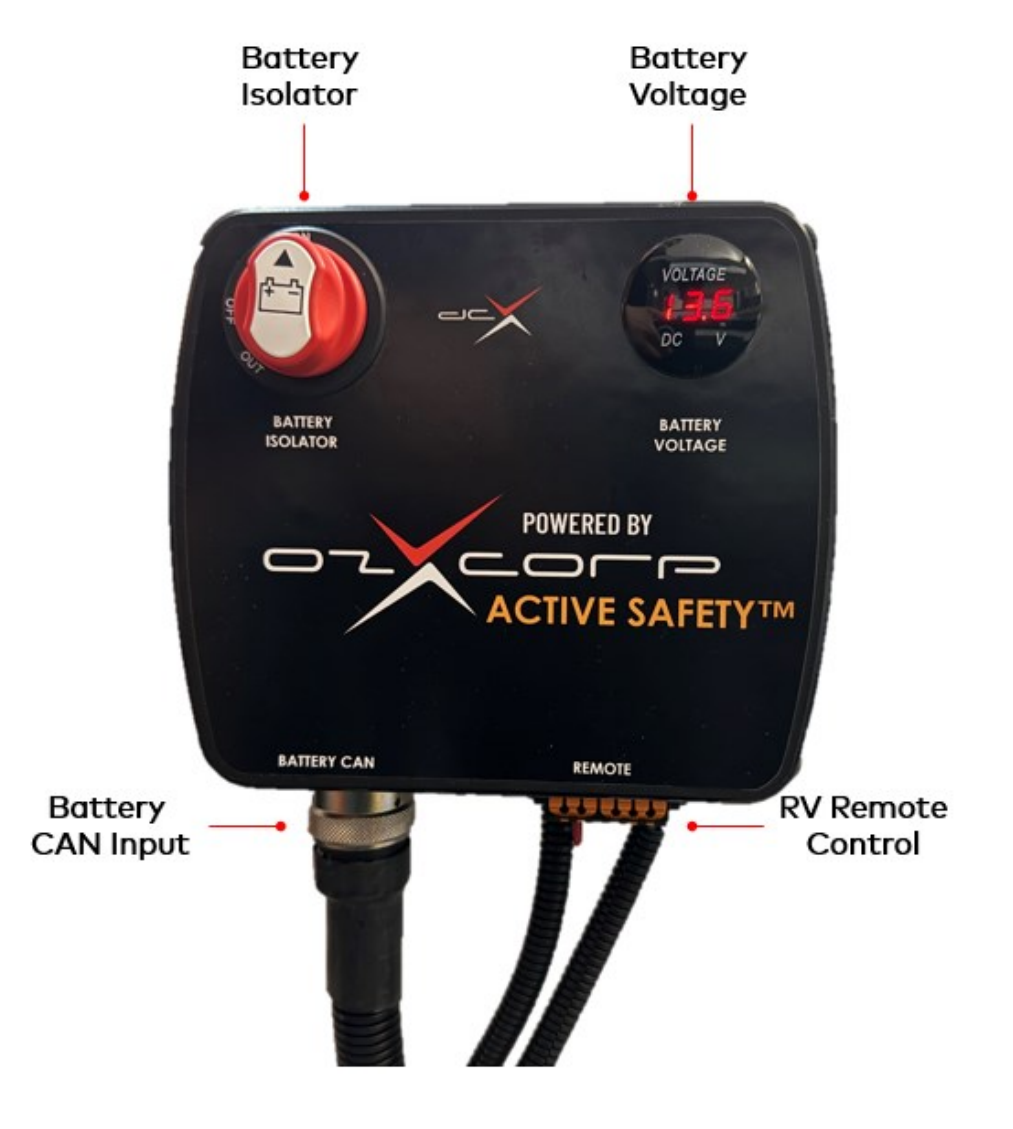

  • 1x Active Safety Box

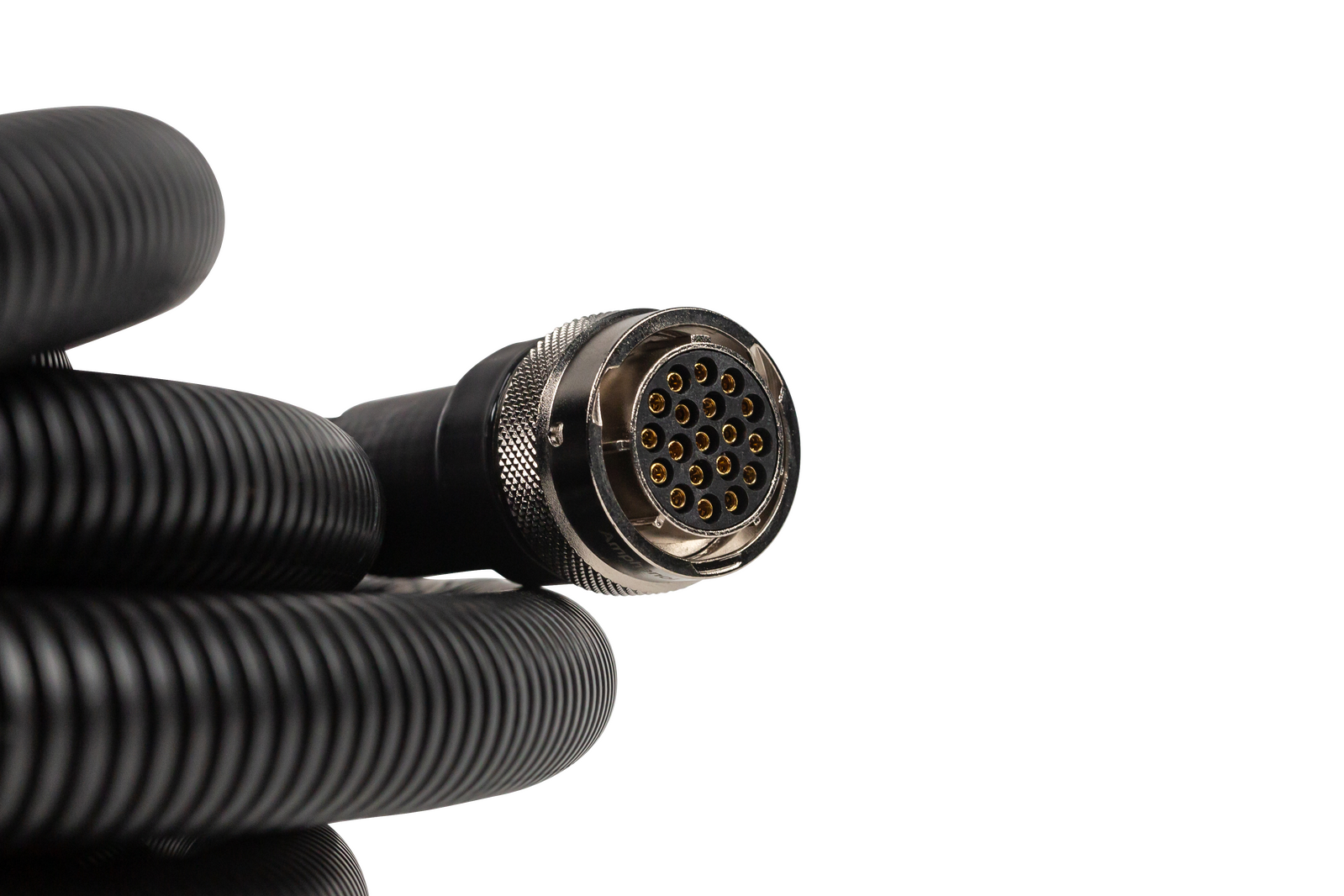

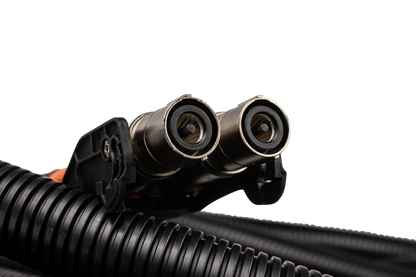

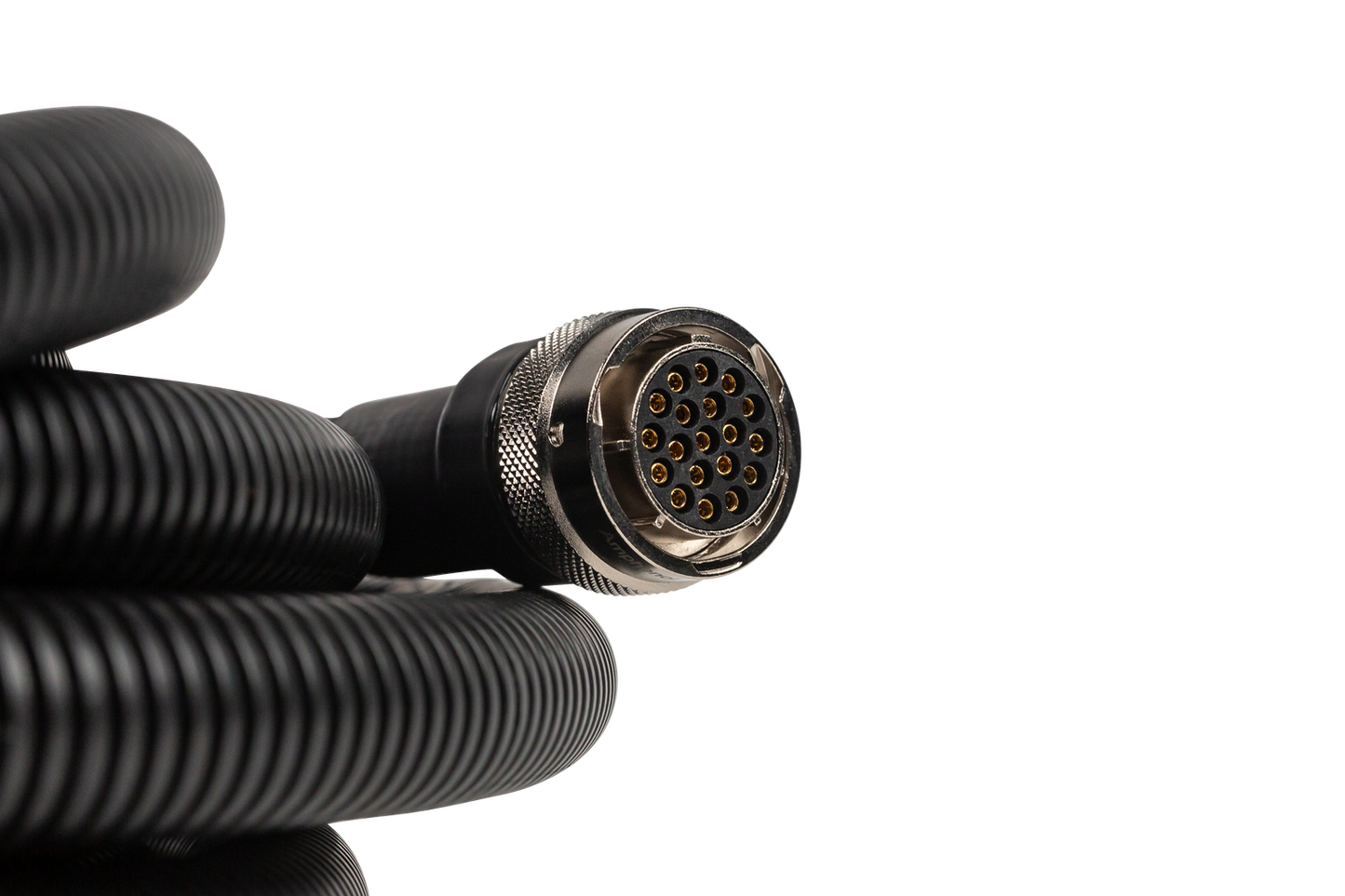

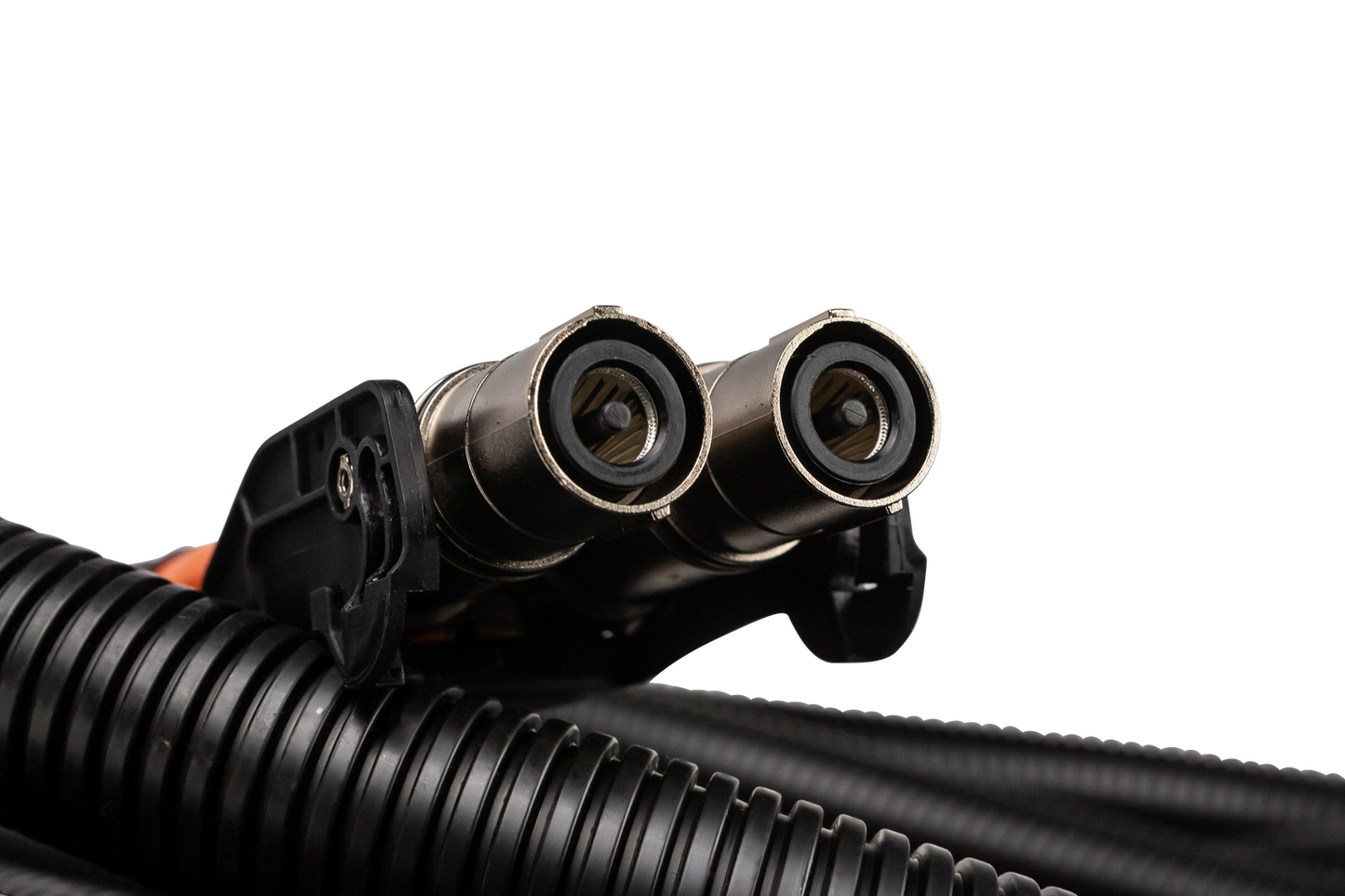

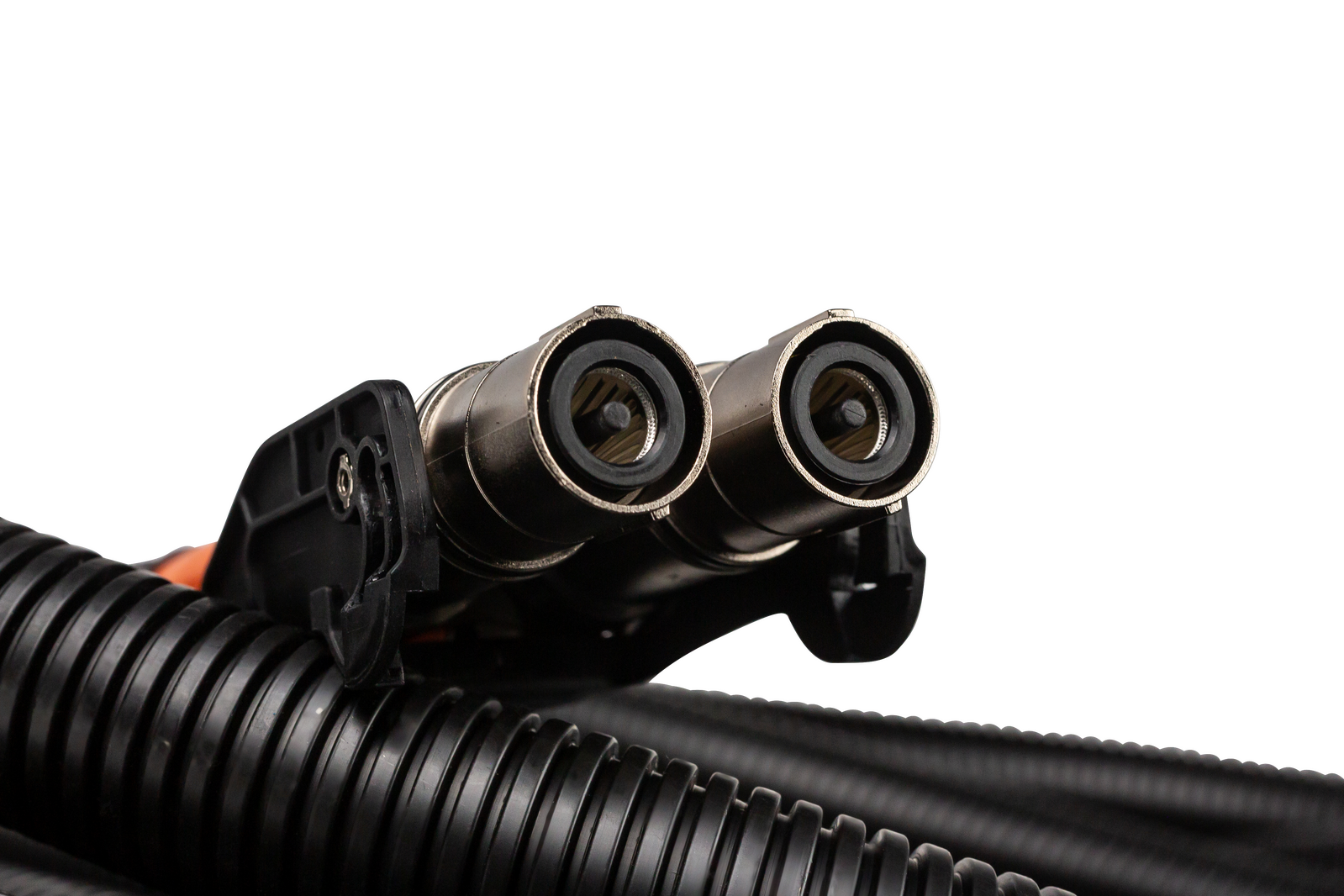

  • 1x Connector Kit
  • 1x Battery Mounting Kit

Chassis-Mount Advantage

  • Lower centre of gravity
  • Improved weight distribution
  • Secure mechanical integration
  • Reduced reliance on internal storage compartments
  • Cleaner electrical installation
  • Better utilisation of available vehicle space
  • Designed for OEM integration

Technical Specifications

  • Nominal Voltage: 12.8V
  • Capacity: 628Ah
  • Energy: 8kWh
  • Chemistry: LiFePO4
  • Installation: Chassis mount
  • Protection: IP67
  • Heating: Integrated

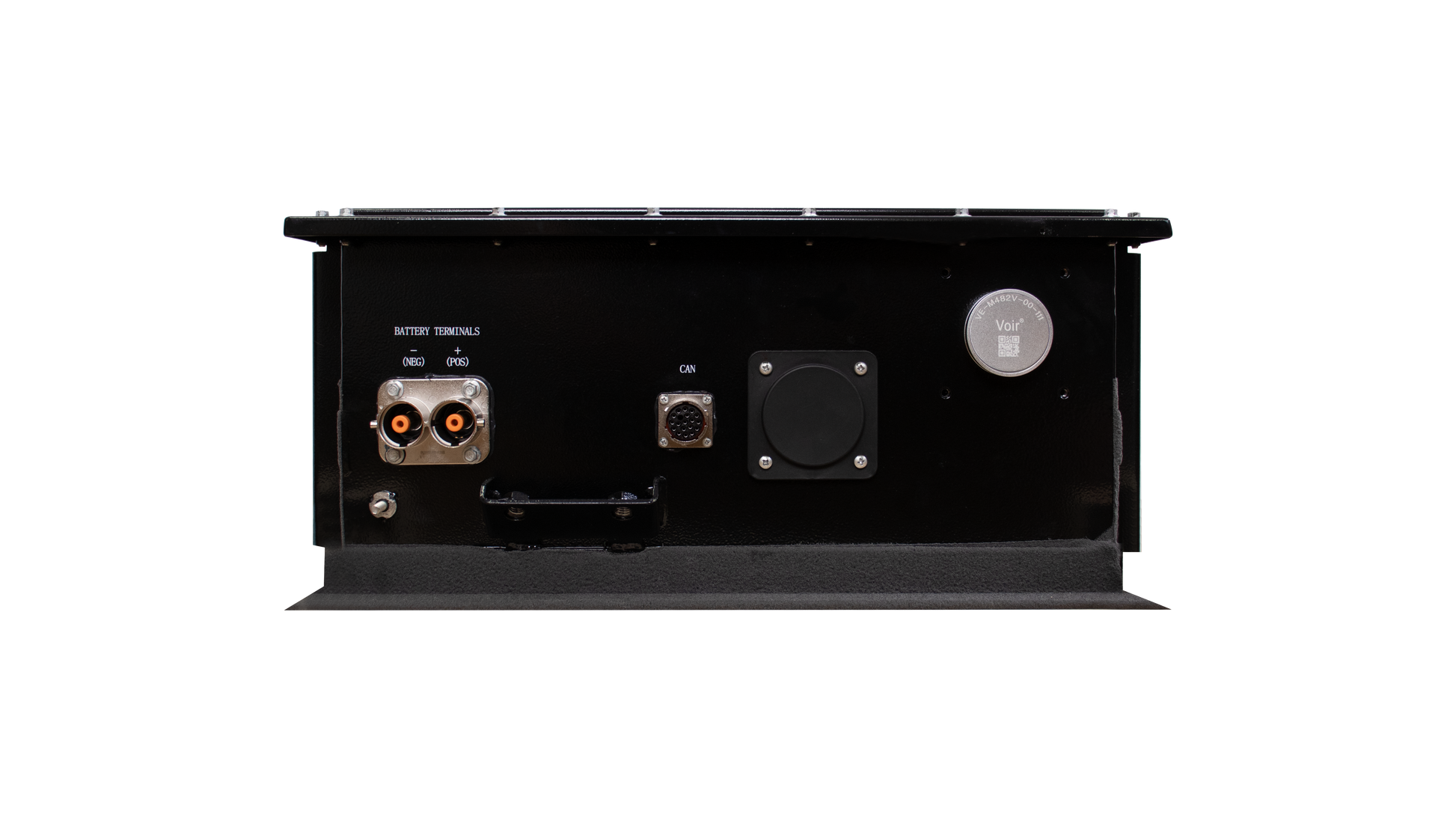

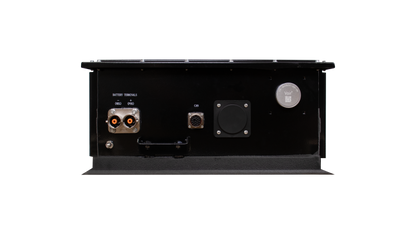

  • Connectors: Automotive-grade
  • Cycle Life: 8,000+ cycles
  • Weight: 72kg
  • Compliance: UL1973:2022
  • Warranty: 7 years

Built For

Weekend and extended touring, caravans and off-grid RVs, remote work and recreation, and travellers stepping up to their first chassis-mount lithium system.

Dimensions to be confirmed — full technical datasheet available on request. Talk to an expert.

View full details

Frequently Asked Questions

How is the DCX 628Ah battery installed?

The DCX 628Ah is chassis-mounted, bolting directly between your caravan's steel frame rails below the floor — not stored inside a cabinet. This lowers your centre of gravity and frees up internal storage space.

What's the difference between LiFePO4 and other lithium chemistries?

LiFePO4 (LFP) is more thermally stable and has a longer cycle life than chemistries like NMC. The DCX 628Ah uses LFP chemistry, rated for 8,000+ charge cycles.

What's included when I buy this battery?

Each DCX 628Ah comes with an Active Safety Box, a Connector Kit, and a Battery Mounting Kit — everything needed for a complete chassis-mount installation.

How long is the warranty?

The DCX 628Ah is backed by a 7-year warranty and is UL1973:2022 certified.

Can this battery handle Australian conditions?

Yes. It includes IP67 protection and integrated heating, and is designed specifically for the vibration, movement and temperature extremes of caravan and RV use.
