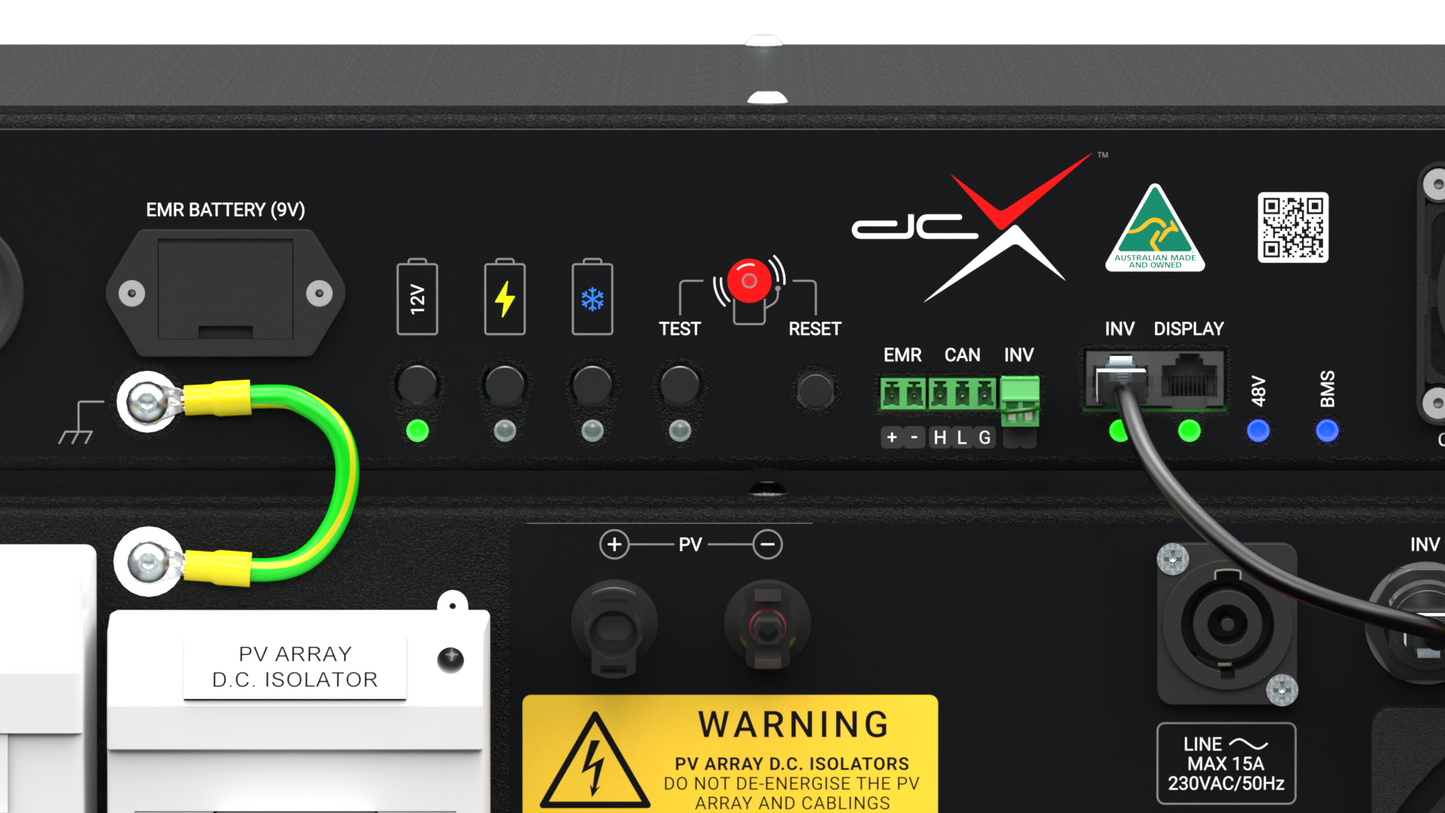

DCX 48V Inverter Power System – Complete Off-Grid Energy Solution
The OzX DCX 48V Inverter Power System delivers high-performance, reliable energy for caravans, RVs, mobile workshops, and off-grid applications. Designed for durability, plug-and-play installation, and seamless integration with OzX 48V battery packs, this system is ideal for extended travel, backup power, and solar-integrated off-grid setups.
Key Features
AC Output: 5,000 W pure sine wave inverter
Solar Input Capability (MPPT):
60 – 120 V for low-voltage PV arrays
120 – 450 V for high-voltage PV arrays
DC Output: 1,000 W @ 13.2 V for 12V loads
Automatic Transfer Switch: Smooth transition between power sources
Compact & Lightweight: 26.5 kg; dimensions 650 × 485 × 290 mm (W × D × H)
Durable & Safe: IP21 rated, operating temp -10° to +50 °C, relative humidity 5–95%
Electrical Specifications
Inverter:
Nominal output: 230 Vac ±5%, 50 Hz, pure sine wave
Continuous output: 5,000 W
Surge output: 10,000 W (≤5 seconds)
Peak efficiency: 93%
Power factor: 1.0
Utility / Generator Charging:
Grid / generator charging power: 1,000–2,000 W @ 230 Vac
Max charge current: 60–100 A
PV Charging (MPPT):
PV Panel Classification: IEC61730 – Class A
Low-voltage range: 60–120 V, max 3,000 W
High-voltage range: 120–450 V, max 5,000 W
MPPT start-up voltage: 65 V (LV) / 150 V (HV)
Benefits
Reliable energy for caravans, RVs, and mobile off-grid setups
Flexible solar input for low or high-voltage arrays
Plug-and-play integration with OzX 48V batteries
Durable, waterproof, and maintenance-friendly
Scalable for larger energy requirements
Applications
Off-grid power for caravans and RVs
Mobile workshops and trailers
Backup power for homes or industrial equipment
Solar-integrated energy solutions for extended travel
